Oil Tap with Cutout Switch - Dimensions

Our oil taps are available in two configurations. Either Male to Female or Female to Female. Each of these configurations are available in two sizes, giving a choice of four taps in total.

• 1/4 BSP Male to Female

• 1/4 BSP Female to Female

• 3/8 BSP Male to Female

• 3/8 BSP Female to Female

---

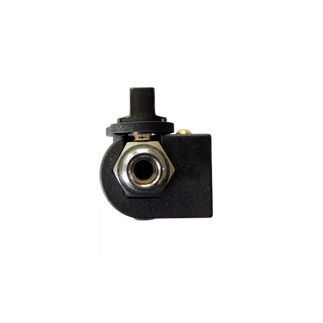

Kingpin Oil Tap with Cutout Switch Dimensions

1/4 BSP threads measure 0.518" (13.16mm) outside diameter (OD) and have 19 teeth per inch (TPI)

Both types of 1/4 BSP taps have the same overall dimensions as follows:

• w = 34.5mm or 1.36"

• h = 42mm or 1.65"

• l = 37.2mm or 1.47"

• Bore = 5.7mm or 0.22"

3/8 BSP threads measure 0.656" (16.66mm) OD and have 19 TPI

Both types of 3/8 BSP taps have the same overall dimensions as follows:

• 34.5mm or 1.36"

• h = 45mm or 1.77"

• l = 40.4mm or 1.59"

• Bore = 7.7mm or 0.30"
